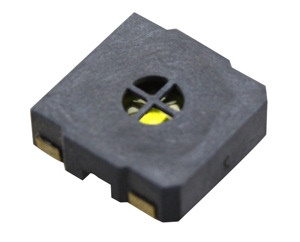

F-L-SC1308-0.7W

Technical Drawing

F-L-SC1308-0.7W

Dimension
13 x 13 x 4 mm
Sound Pressure Level
88 ±3 dB(A) at 0.7 W / 0.1 m
Operating Temperature
-40 to +85 °C
Resonance Frequency (F0)
1100 ±20% Hz at 1.0 V
Nominal Input Power
0.7 W
Max. Input Power
1 W
Impedance
8 ±15% Ω at 2.0 kHz
Frequency Range
F0 to 10 kHz (Output SPL -10 dB)
Information and specifications are subject to change. Site updates may be carried out with delay.
