SMD Loudspeaker
Back

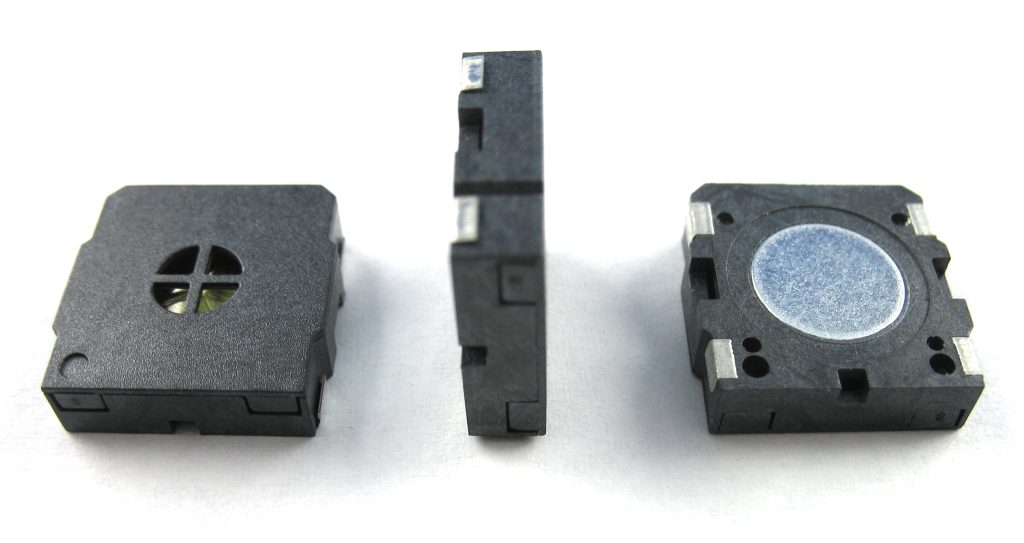

F-LS-SC1508-0.5W
Technical Drawing
F-LS-SC1508-0.5W
Dimension
15 x 15 x 4 mm
Sound Pressure Level
87 ±3 dB(A) at 0.5 W / 0.1 m
Operating Temperature
-40 to +85 °C
Resonance Frequency (F0)
850 ±20% Hz at 1.0 V
Nominal Input Power
0.5 W
Max. Input Power
0.8 W
Impedance
8 ±15% Ω at 2.0 kHz
Frequency Range
F0 to 20 kHz (Output SPL -10 dB)
Information and specifications are subject to change. Site updates may be carried out with delay.
