Haptic Feedback

Sort products by

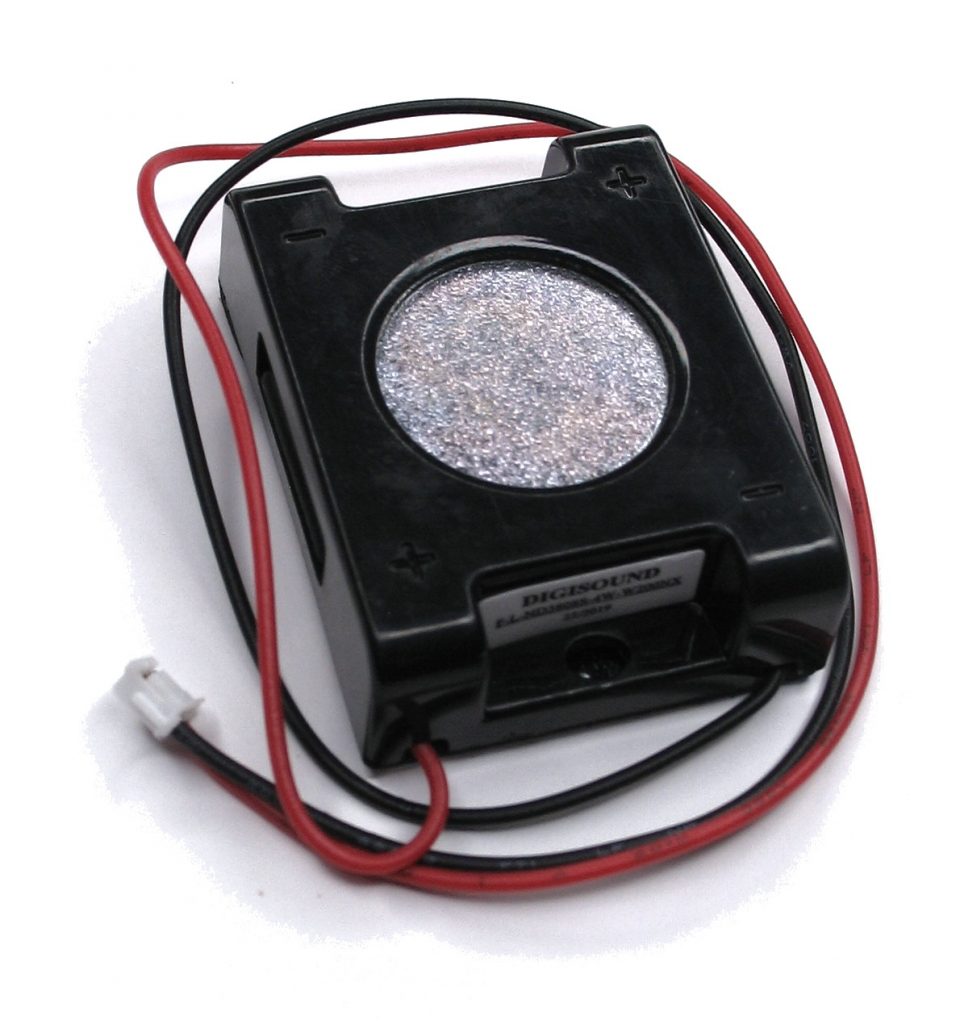

F-L-ND3808S-4WW200NX

Dimension
42 x 32 x 13 mm

Sound Pressure Level
≥80 dB(A) at 0.1 W/ 0.1 m/ 1 kHz

Resonance Frequency (F0)
144 - 216 Hz Without baffle

Operating Temperature
-25 to +80 °C

Nominal Input Power
4 W

Max. Input Power
5 W (1 min on, 2 min off) cycling for 10 times

Impedance
8 ±15% Ω at 1 kHz

Frequency Range
F0 - 8 kHz

Dimension
71 x 47 x 13 mm

Sound Pressure Level
77 ±3 dB(A) at 0.1 m / 0.77 V / 1 kHz

Resonance Frequency (F0)
180 Hz ±20% at 1 V

Operating Temperature
-10 to +55 °C

Nominal Input Power
3 W

Max. Input Power
5 W

Impedance
6 Ω ±15% at 500 Hz

Frequency Range
F0 - 16 kHz

Dimension
Ø10 x 2.45 mm

Rated Voltage
3 VDC

Operating Voltage
2.7 - 3.3 VDC

Contact / Wire
Wire 16 mm

Operating Temperature
-20 to +60 °C

Dimension
Ø10 x 2.45 mm

Rated Voltage
3 VDC

Operating Voltage
2.7 - 3.3 VDC

Contact / Wire
Wire 10 mm

Operating Temperature
-20 to +60 °C

Dimension
Ø10 x 3.20 mm

Rated Voltage
3 VDC

Operating Voltage
2.7 - 3.3 VDC

Contact / Wire
Wire 10 mm

Operating Temperature
-20 to +60 °C

Dimension
Ø7 x 24.5 mm

Rated Voltage
3 VDC

Operating Voltage
3 - 4.5 VDC

Contact / Wire
Wire 20 mm

Operating Temperature
-40 to +70 °C, 10 - 90 %RH

...
