Magnetic-Buzzer

Back

Subcategories

F-B-M0503ESB

Dimension
5 x 5 x 3 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 4 Vo-p
Sound Pressure Level
≥78 dB(A) at 10 cm
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-30 to +70 °C
Resistance
12 ±3 Ω

F-B-M1101EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1-2 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
16 ±4 Ω

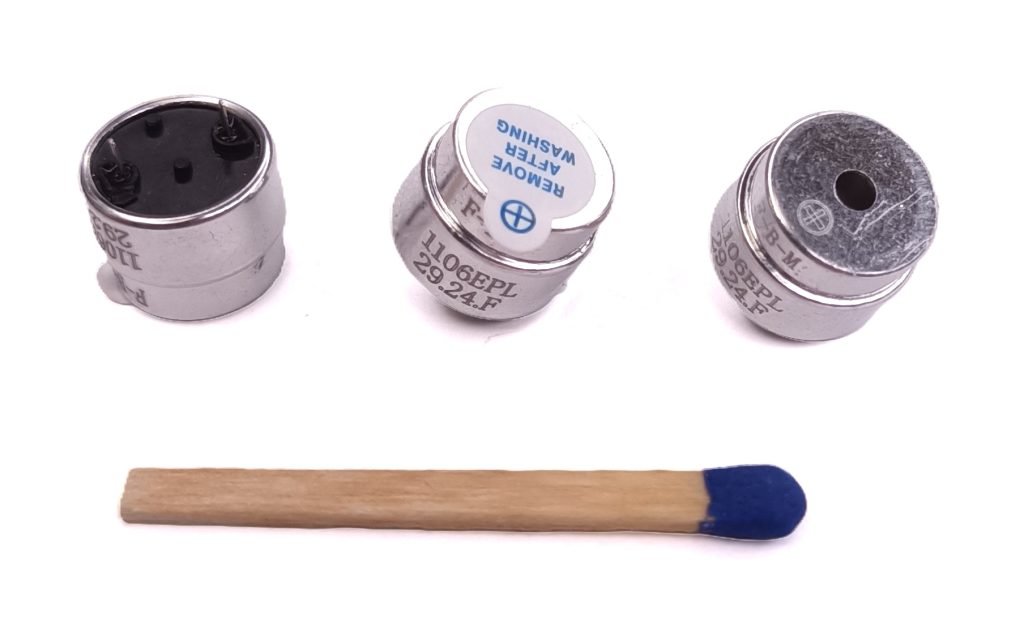

F-B-M1106EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
5-7 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
42 ±4 Ω

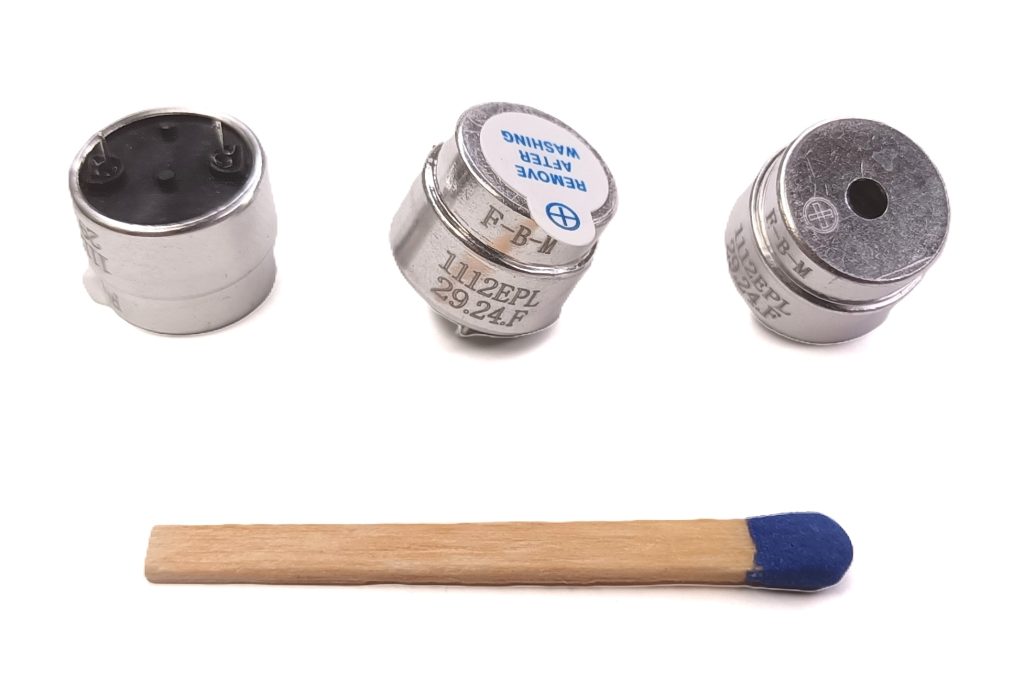

F-B-M1112EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 15 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±14 Ω

F-B-M1201EPB

Dimension
Ø12 x 9 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1-2 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
16 ±4 Ω

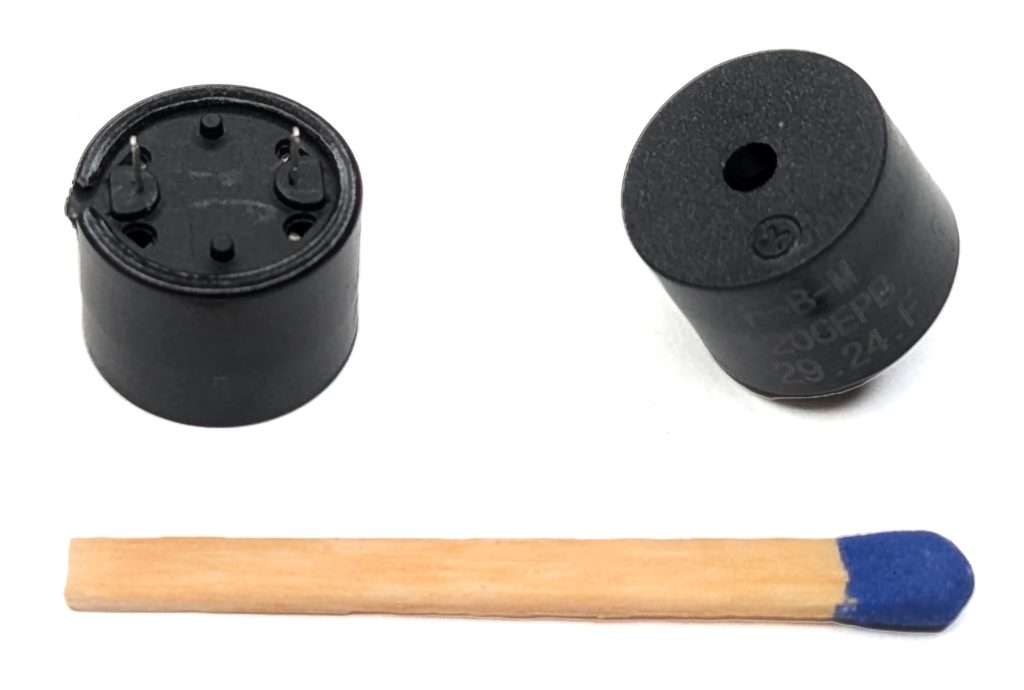

F-B-M1206EPB

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
5-7 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
42 ±4 Ω

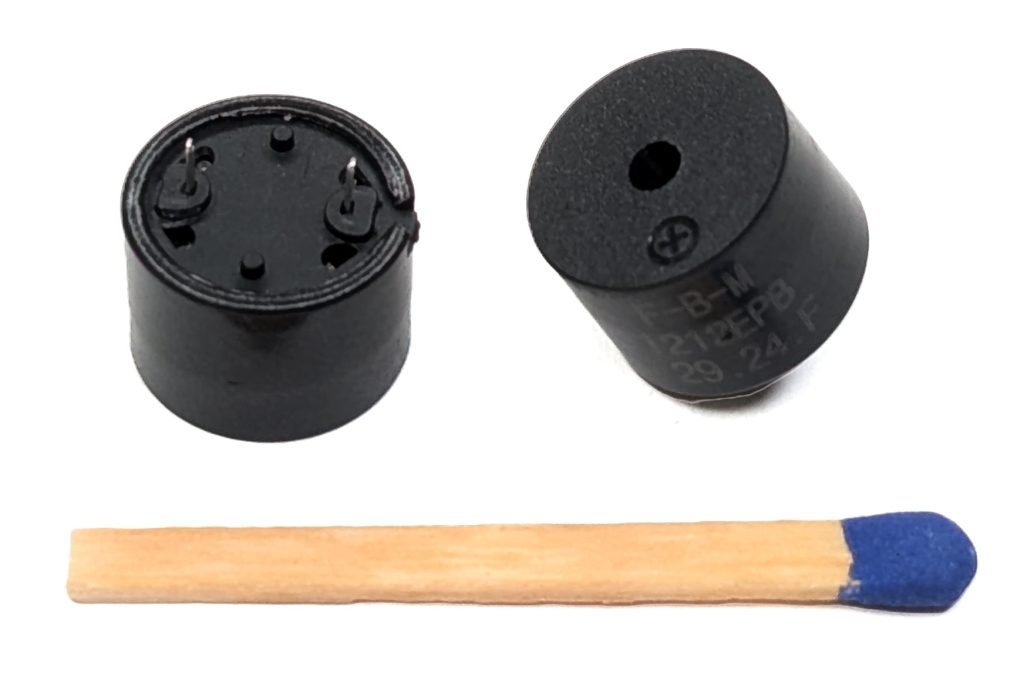

F-B-M1212EPB

Dimension
Ø12 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 15 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±14 Ω

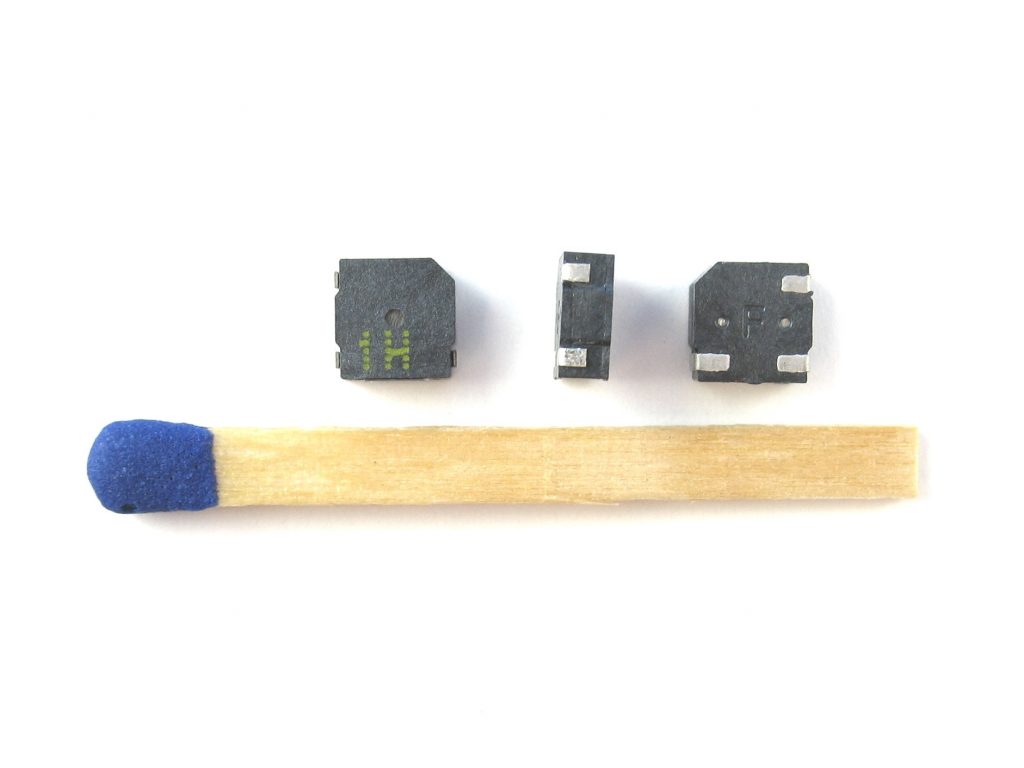

F-B-M503ESB

Dimension
5.5 x 5 x 2 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥80 dB(A) at 10 cm
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-40 to +105 °C
Resistance
12 ±2 Ω

F-B-M8503ESB

Dimension
8.5 x 8.5 x 3 mm
Rated Voltage
3 Vo-p
Operating Voltage
1.5 - 4.5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2670 Hz
Operating Temperature
-30 to +70 °C
Resistance
20 ±3 Ω

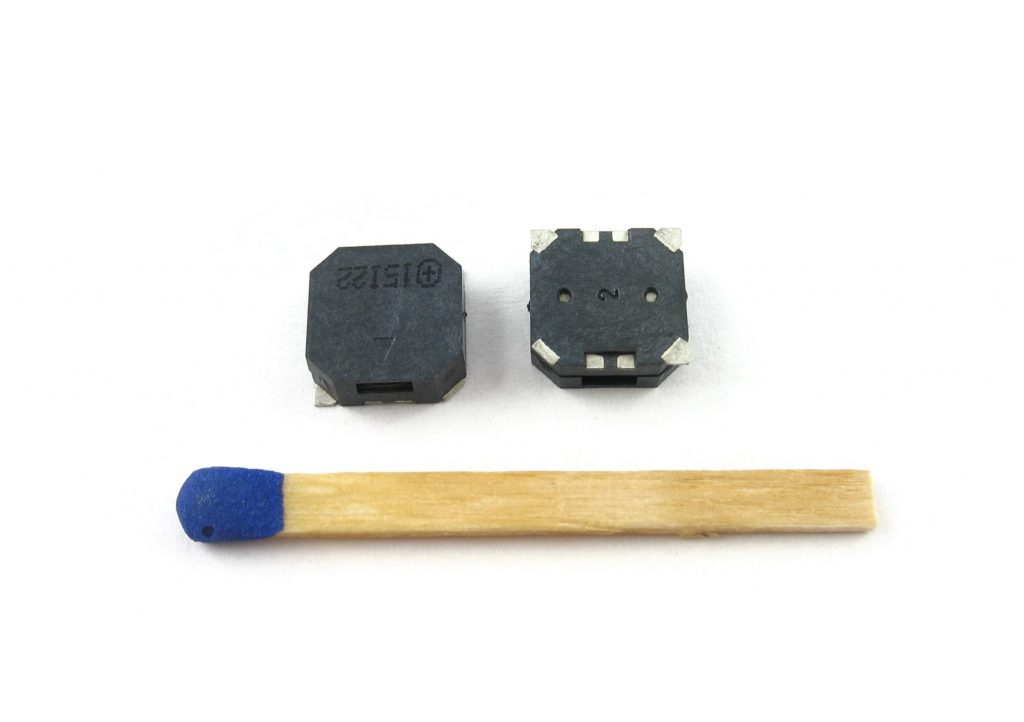

F-B-M8505ESB

Dimension
8.5 x 8.5 x 3 mm
Rated Voltage
5 V
Operating Voltage
3 - 7 V
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2700 Hz
Operating Temperature
-20 to +70 °C
Resistance
32 ±5 Ω

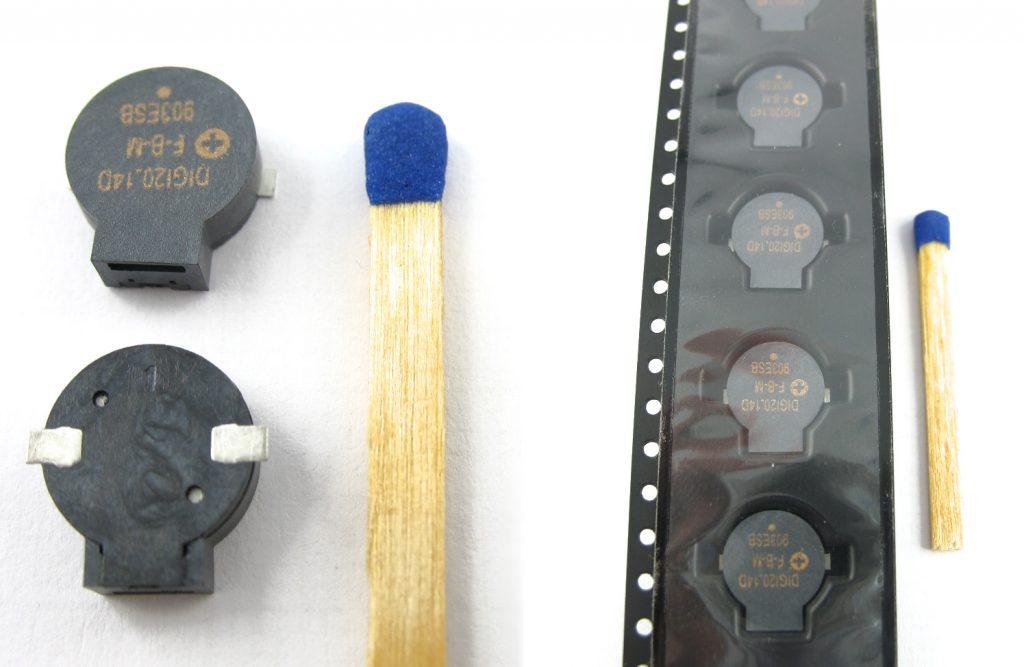

F-B-M903ESB

Dimension
Ø9.2 x 10.5 x 10.6 x 3.2 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥92 dB(A) at 10 cm
Resonance Frequency (F0)
2700 Hz
Operating Temperature
-40 to +105 °C
Resistance
16 ±3 Ω

F-B-M905ESB

Dimension
Ø9.2 x 10.5 x 10.6 x 3.2 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥92 dB(A) at 10 cm
Resonance Frequency (F0)
2700 Hz
Operating Temperature
-40 to +105 °C
Resistance
32 ±5 Ω

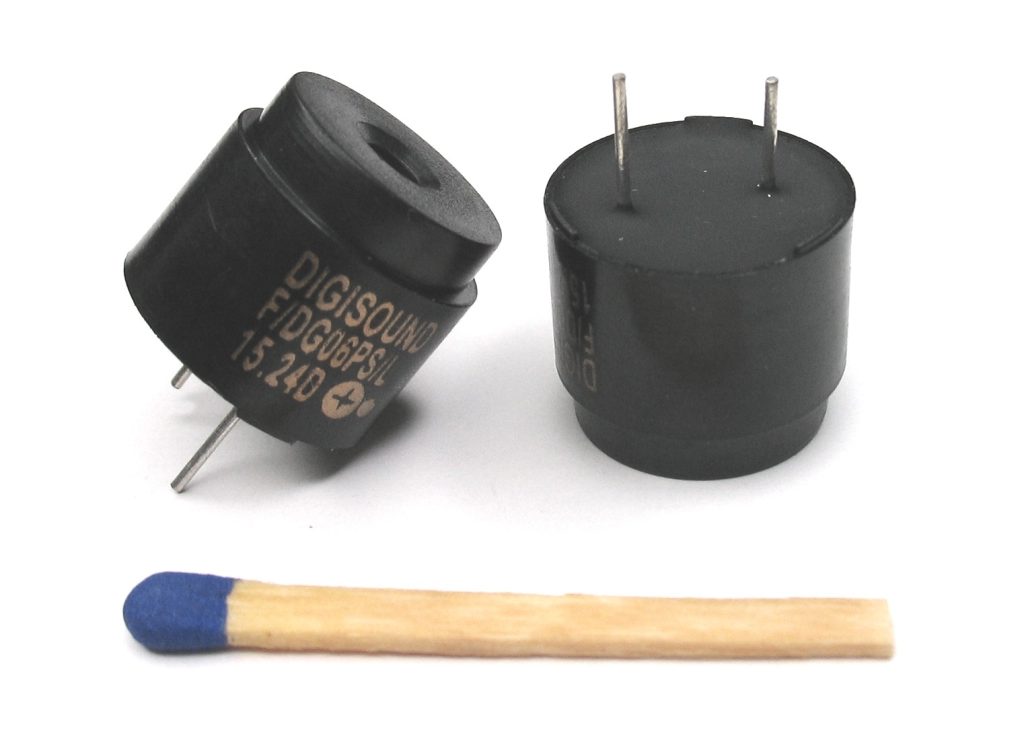

F/DG 06 P S/L

Dimension
Ø16 x 14 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±6 Ω

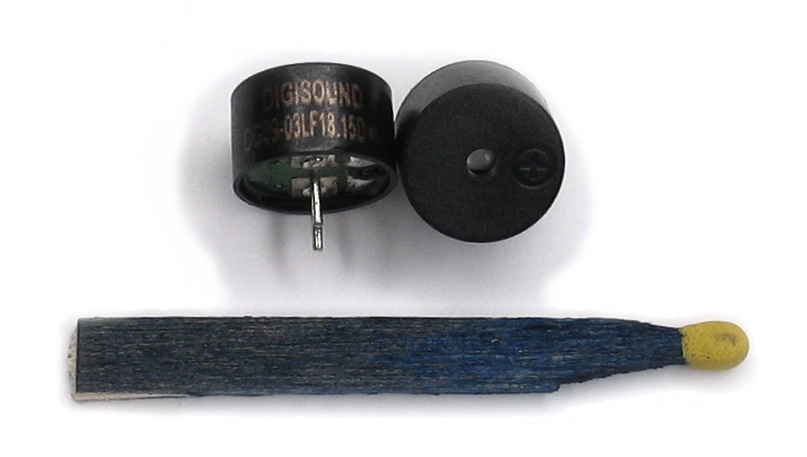

F/DG 09-03-2.7

Dimension
Ø9.2 x 5.5 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥87 dB(A) at 10 cm
Resonance Frequency (F0)
2731 Hz
Operating Temperature
-25 to +70 °C
Resistance
25 ±4 Ω

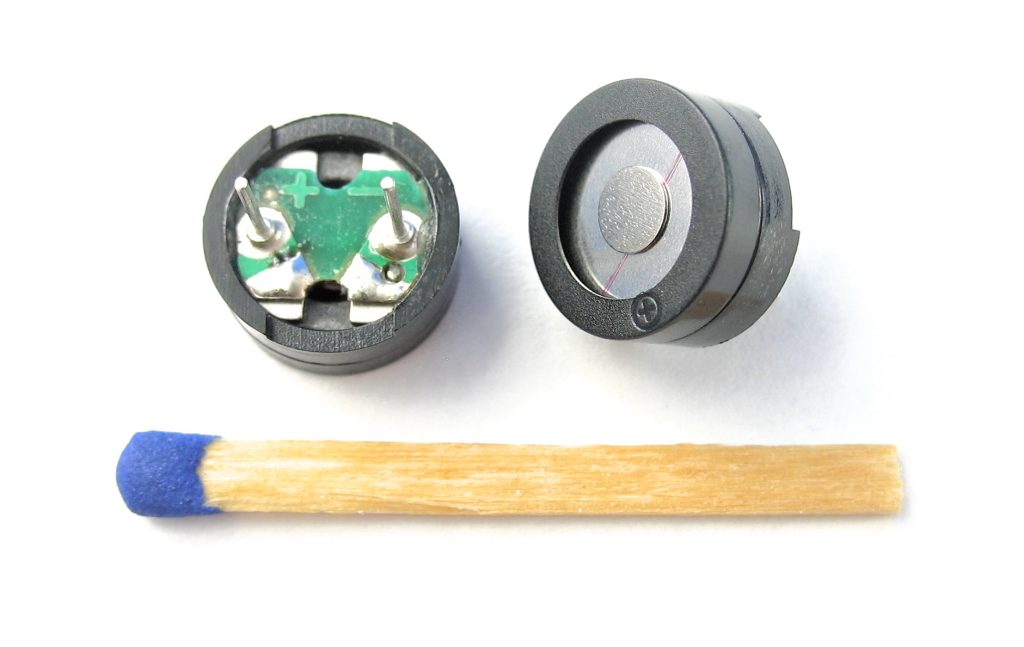

F/DG 105P

Dimension
Ø12 x 5.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥70 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
50 ±7.5 Ω

F/DG 105P-01

Dimension
Ø12 x 5.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥70 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
50 ±7.5 Ω

F/DG 12 P S/L

Dimension
Ø16 x 14 mm
Rated Voltage
12 Vo-p
Operating Voltage
7 - 15 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
115 ±16 Ω

F/DG 12P S/L-09

Dimension
Ø16 x 14.5 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 18 Vo-p
Sound Pressure Level
98 ±3 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-40 to +100 °C
Resistance
115 ±15 Ω

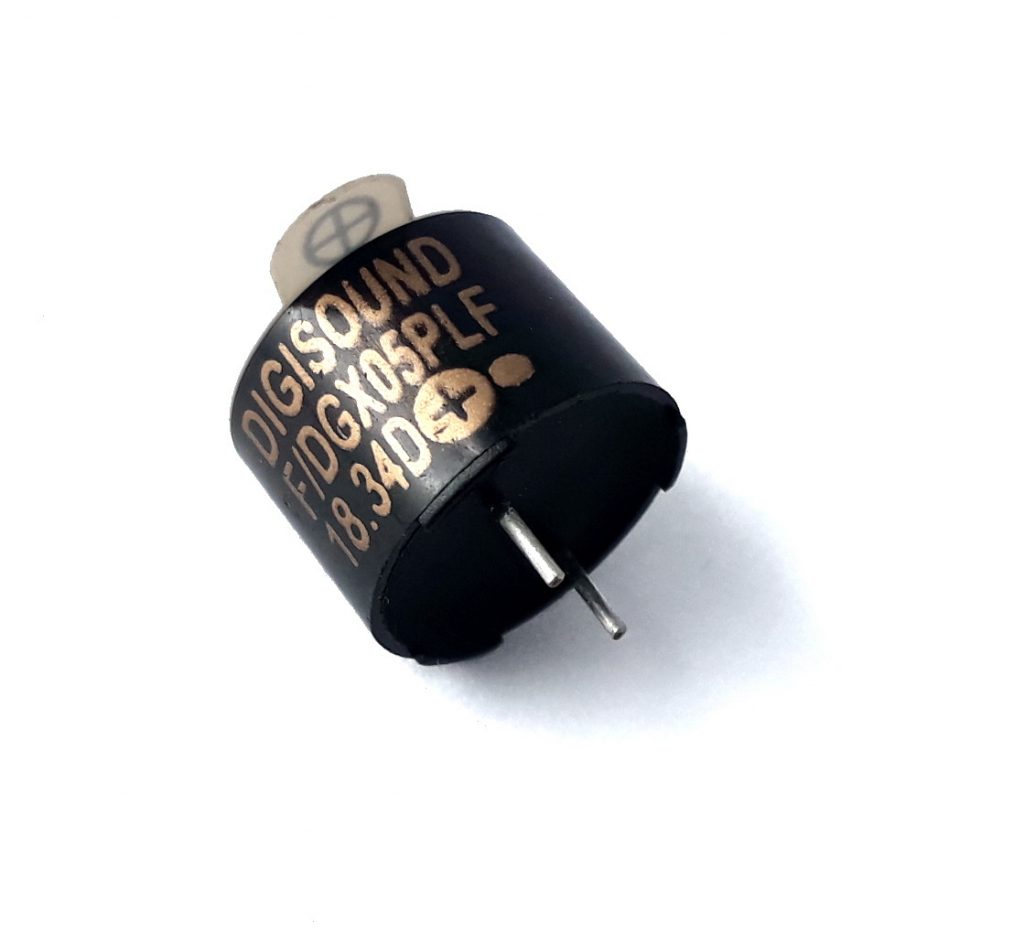

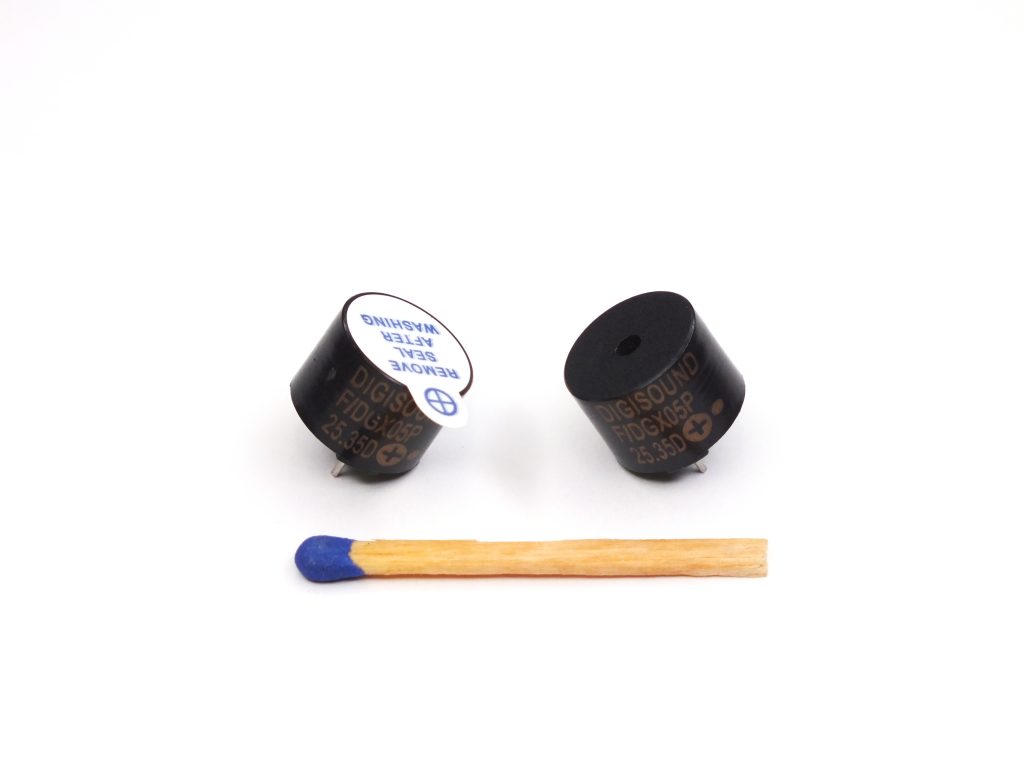

F/DGX 05P with label

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
4 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±5 Ω

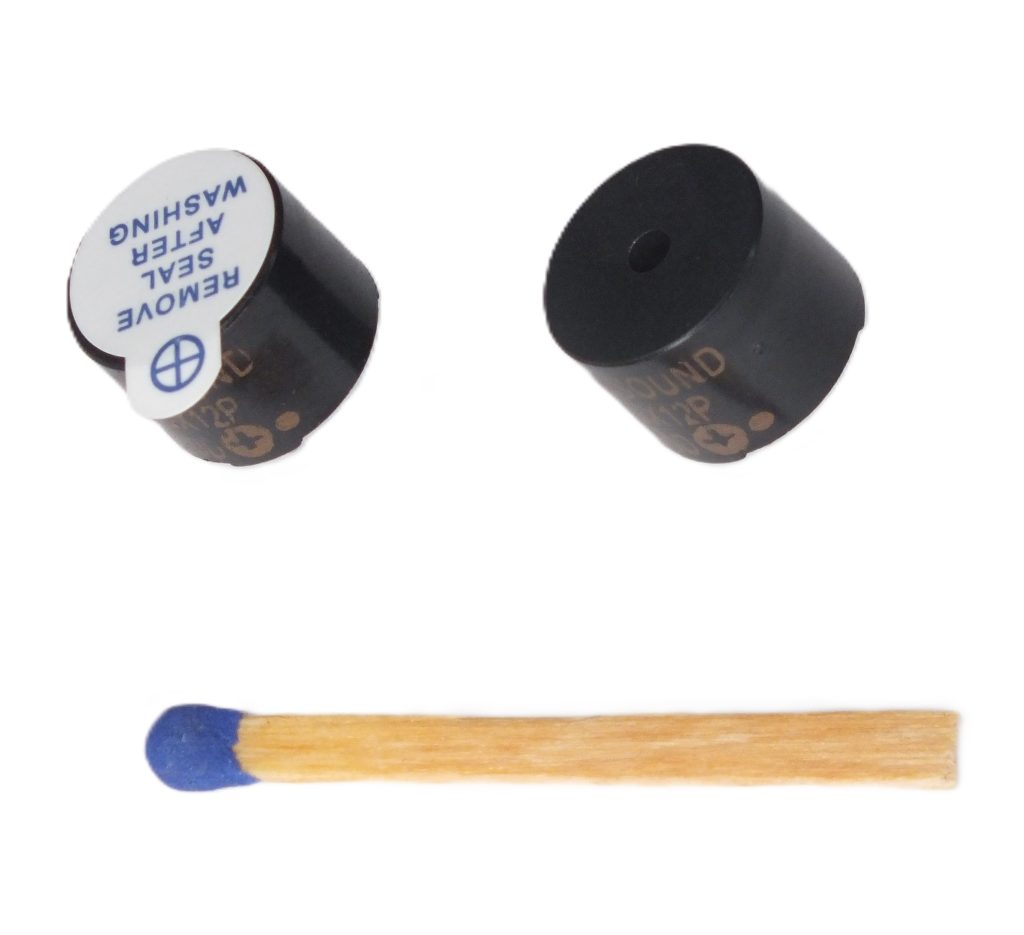

F/DGX 12P WITH LABEL

Dimension
Ø12 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
7 - 16 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±12 Ω

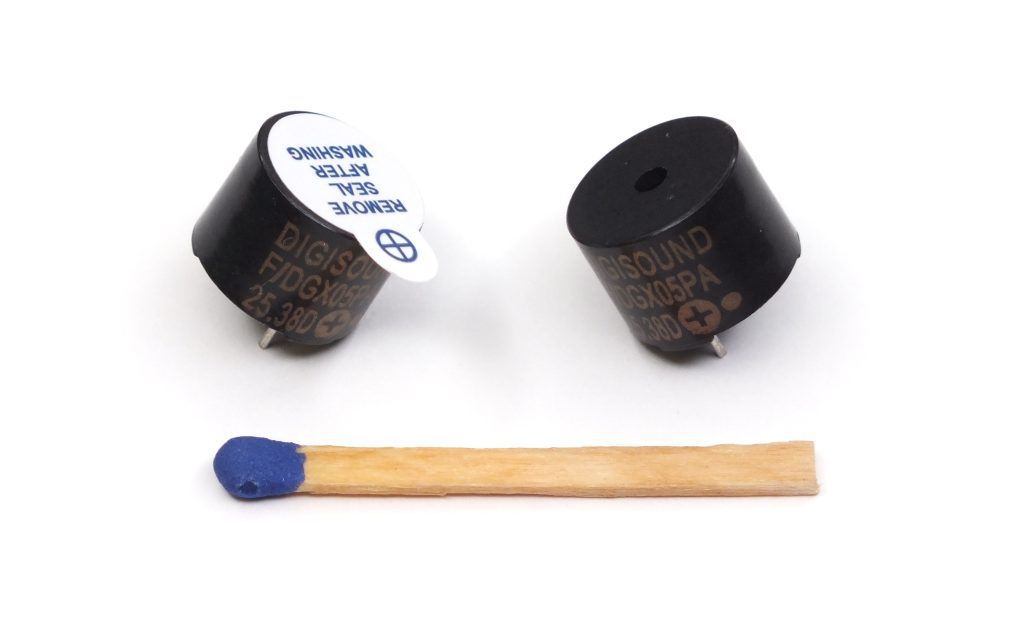

F/DGX05PA WITH LABEL

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
4 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±5 Ω

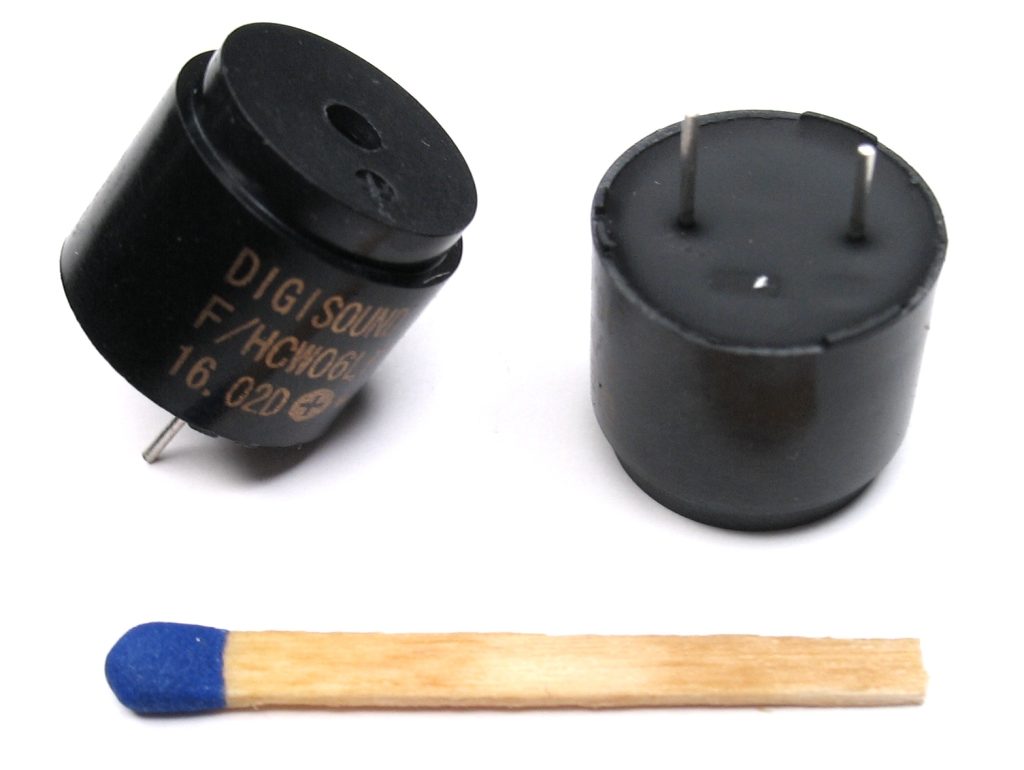

F/HCW 06 WITH LABEL

Dimension
Ø16 x 14 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2200 ±300 Hz
Operating Temperature
-40 to +85 °C

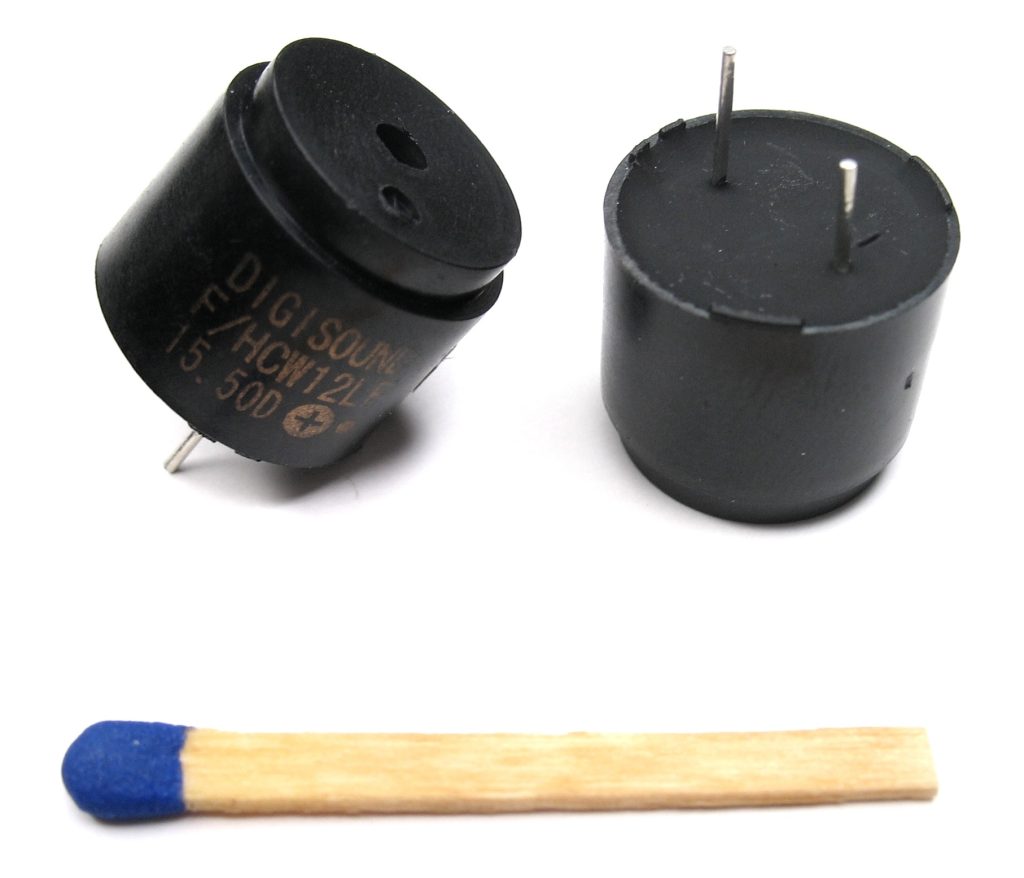

F/HCW 12 WITH LABEL

Dimension
Ø16 x 14 mm
Rated Voltage
12 VDC
Operating Voltage
7 - 15 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2200 ±300 Hz
Operating Temperature
-40 to +85 °C

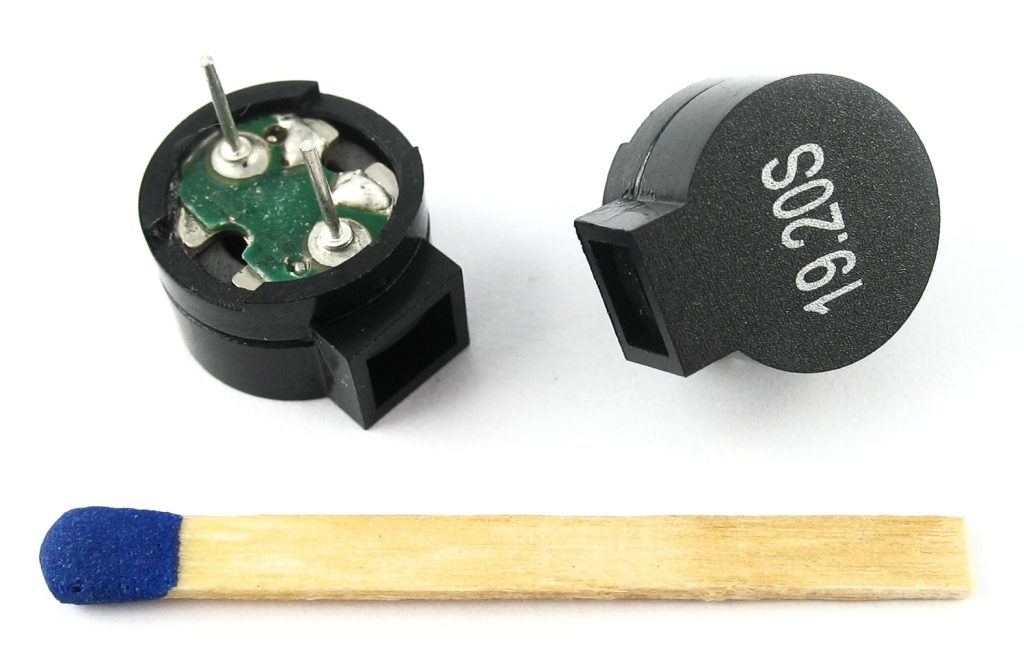

F/PCW-04A

Dimension
Ø12 x 13.5 x 7.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥83 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +60 °C
Resistance
6.5 ±1.5 Ω

F/SMD 03 A

Dimension
14 x 11 x 3.2 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 4.5 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
3200 Hz
Operating Temperature
-40 to +105 °C
Resistance
19 ±3 Ω

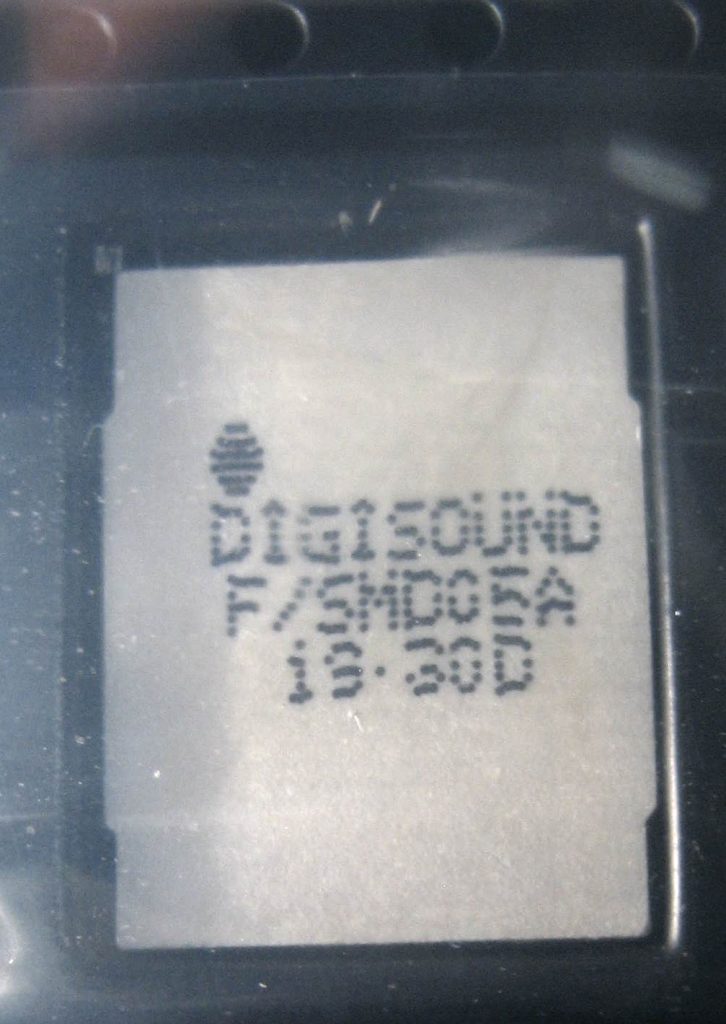

F/SMD 05 A

Dimension
14 x 11 x 3 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2731 Hz
Operating Temperature
-40 to +105 °C
Resistance
40 ±4 Ω

F/SMD8585 HTB

Dimension
8.5 x 8.5 x 3.6 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2730 Hz
Operating Temperature
-40 to +105 °C
Resistance
18 ±3 Ω

F/SMD8585 JS

Dimension
8.5 x 8.5 x 3.6 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2730 Hz
Operating Temperature
-40 to +105 °C
Resistance
18 ±3 Ω

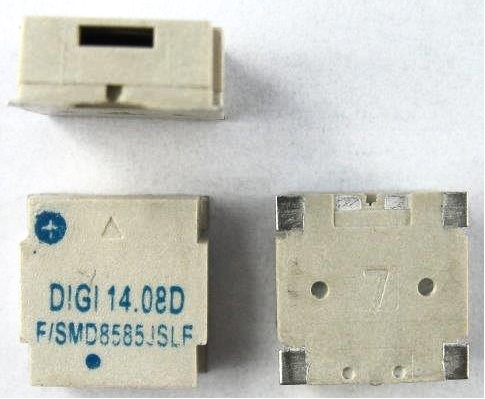

F/SMD8585 JS MAGAZIN

Dimension
8.5 x 8.5 x 3.6 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2730 Hz
Operating Temperature
-40 to +105 °C
Resistance
18 ±3 Ω

F/SWI 155

Dimension
12.8 x 12.8 x 10 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

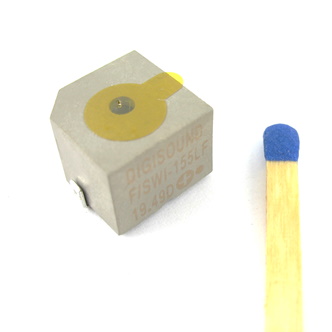

F/SWI 155-01

Dimension
12.8 x 12.8 x 10 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

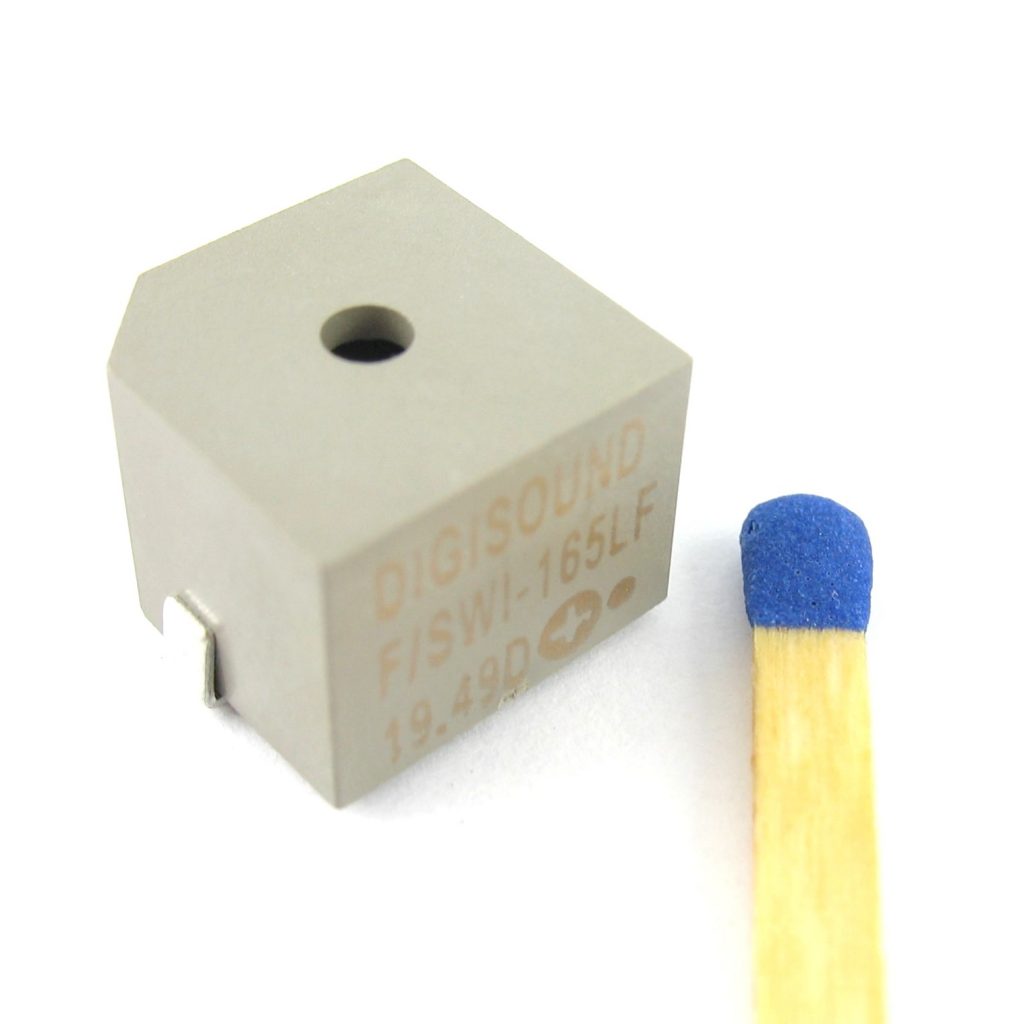

F/SWI 165

Dimension
12.8 x 12.8 x 10 mm
Rated Voltage
12 VDC
Operating Voltage
8 - 15 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

F/SWI 165-01

Dimension
12.8 x 12.8 x 10 mm
Rated Voltage
12 VDC
Operating Voltage
8 - 15 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

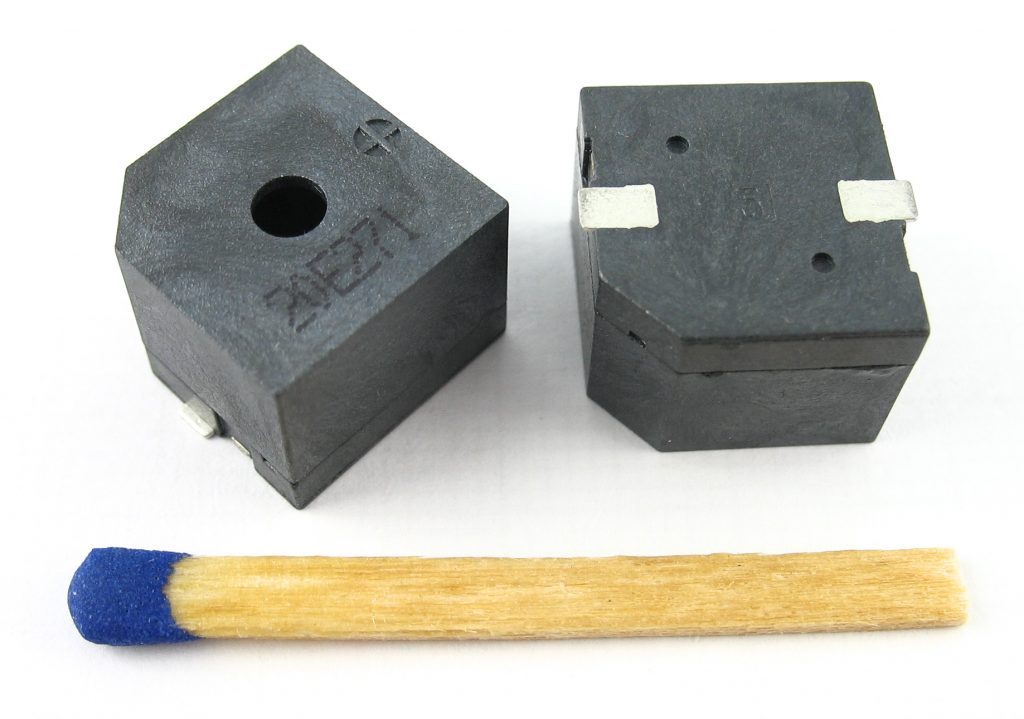

F/SWT 08

Dimension
13 x 13 x 10 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +105 °C
Resistance
47 ±6 Ω

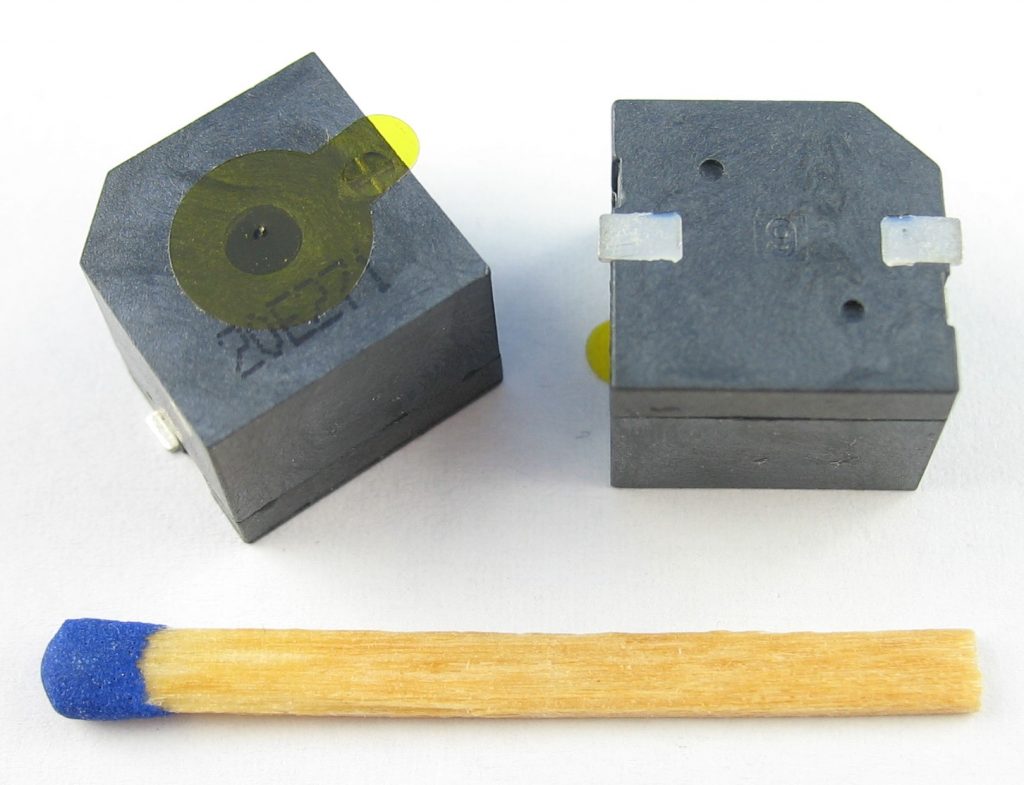

F/SWT 08-01

Dimension
13 x 13 x 10 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +105 °C
Resistance
47 ±6 Ω

F/SWT 09

Dimension
13 x 13 x 10 mm
Rated Voltage
12 V
Operating Voltage
8 - 16 V
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +105 °C
Resistance
140 ±20 Ω

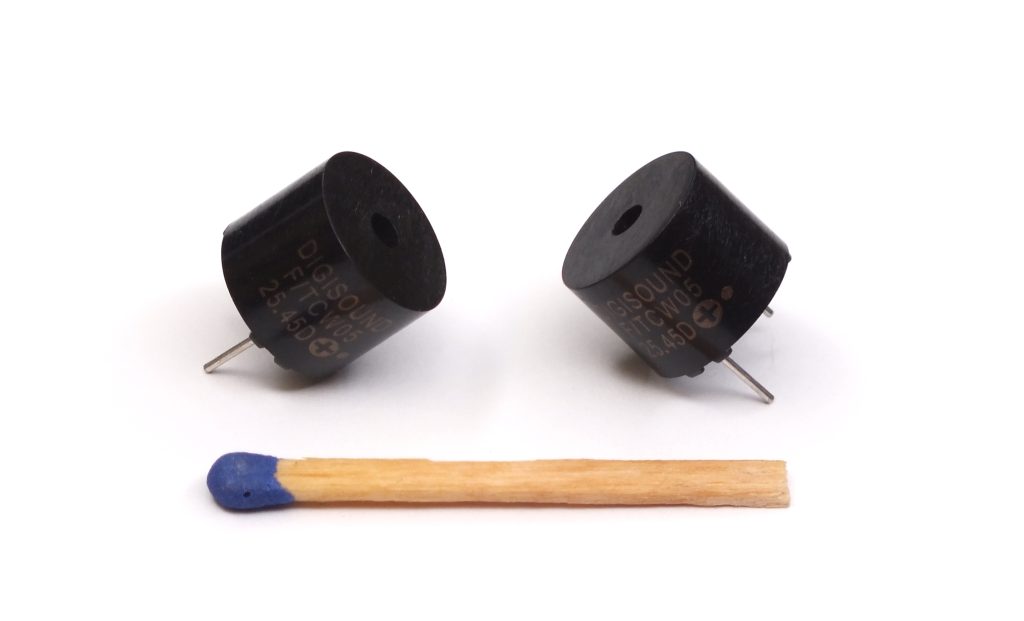

F/TCW 05 w/o LABEL

Dimension
Ø11.8 x 9.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 7 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

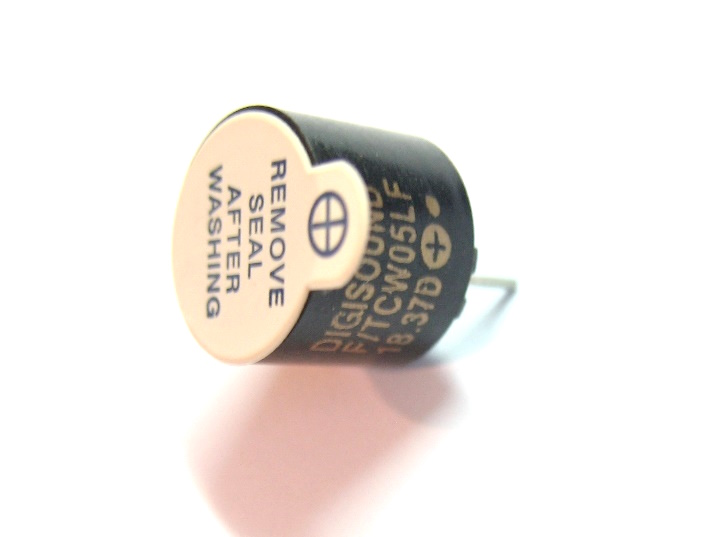

F/TCW 05 WITH LABEL

Dimension
Ø11.8 x 9.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 7 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

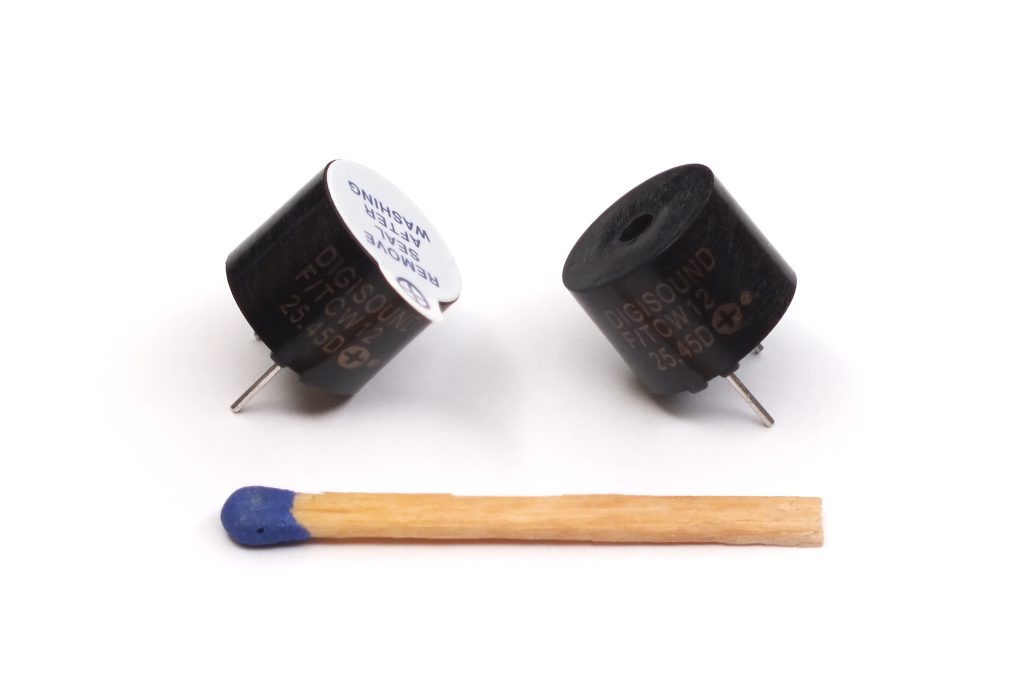

F/TCW 12 WITH LABEL

Dimension
Ø12 x 9.5 mm
Rated Voltage
12 VDC
Operating Voltage
7 - 15 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

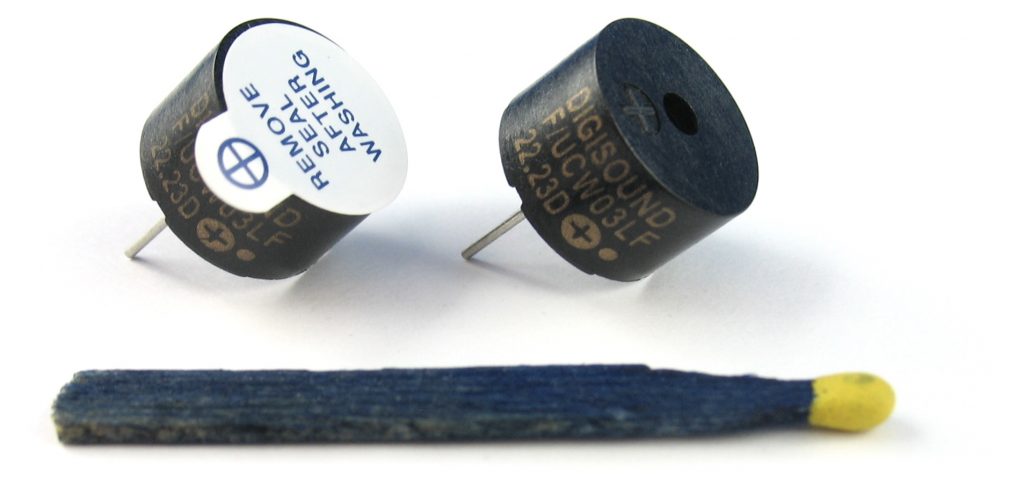

F/UCW 03 WITH LABEL

Dimension
Ø12 x 7.5 mm
Rated Voltage
3 VDC
Operating Voltage
2 - 5 VDC
Sound Pressure Level
≥83 dB(A) at 10 cm
Oscillator Frequency
2400 ±300 Hz
Operating Temperature
-40 to +85 °C

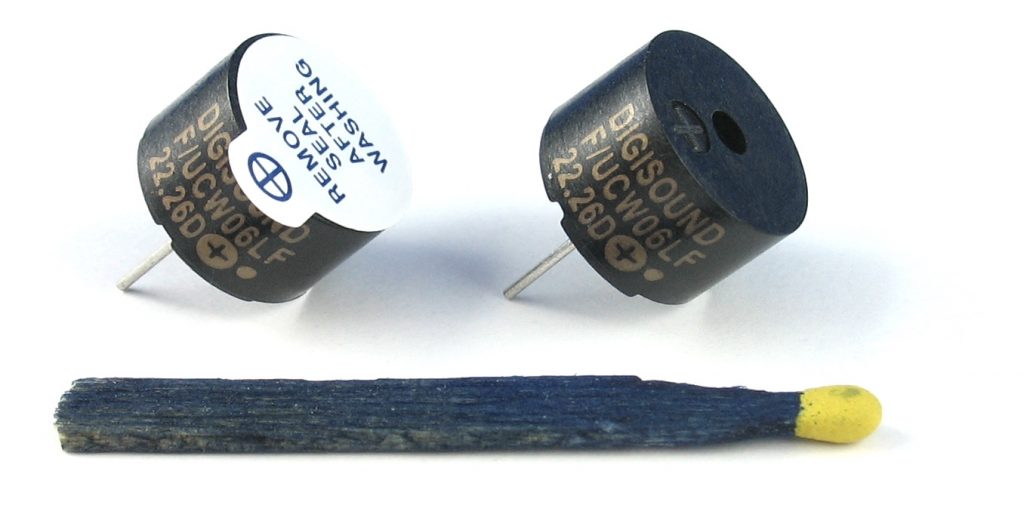

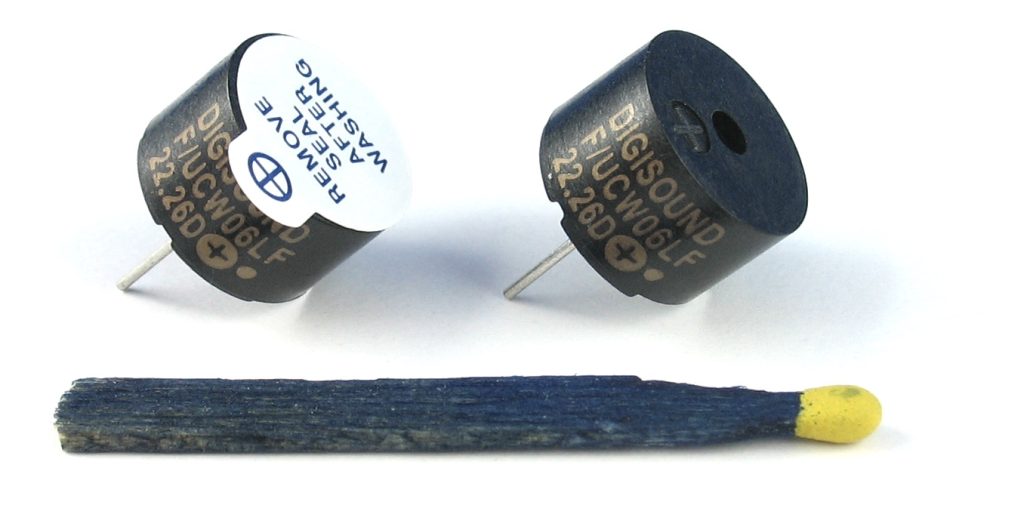

F/UCW 06 WITH LABEL

Dimension
Ø12 x 7.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥85 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

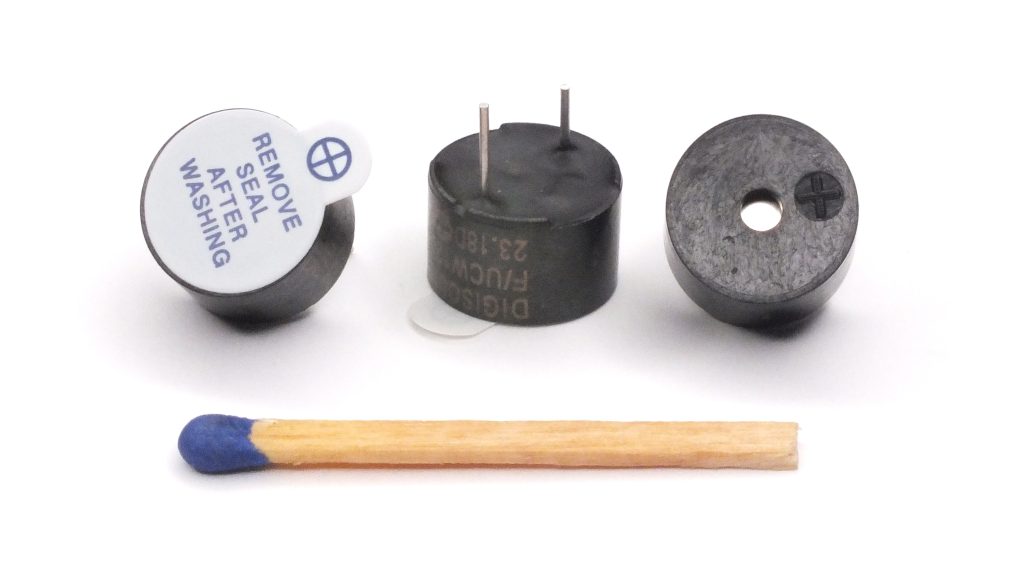

F/UCW 12 WITH LABEL

Dimension
Ø12 x 7.5 mm
Rated Voltage
12 VDC
Operating Voltage
9 - 15 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

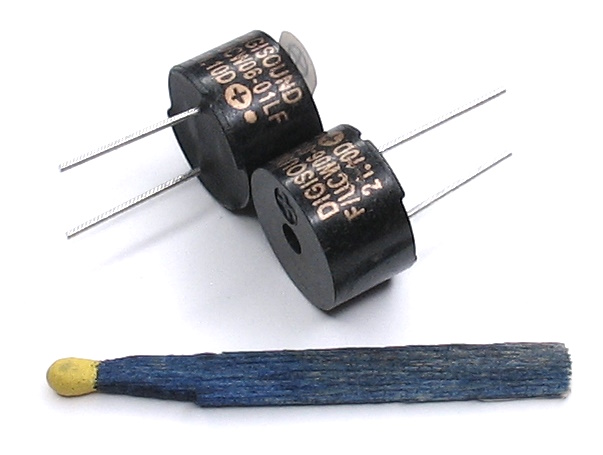

F/UCW06-01

Dimension
Ø12 x 7.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥85 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

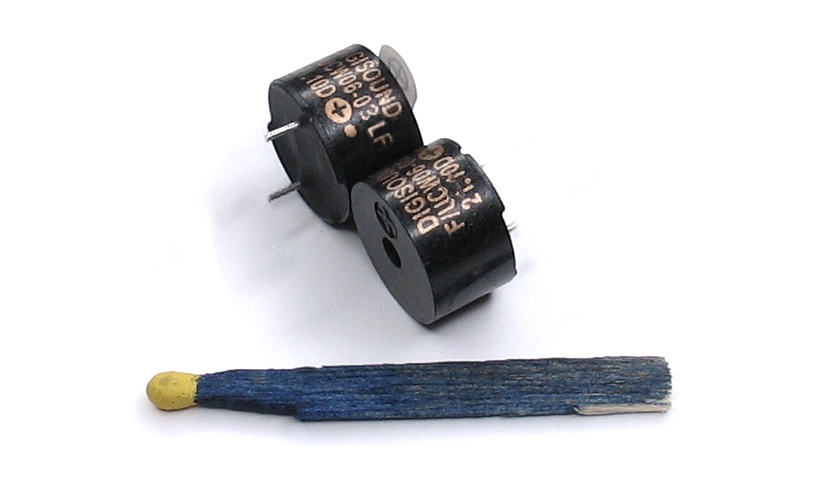

F/UCW06-03WITH LABEL

Dimension
Ø12 x 7.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥85 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

Web content in constant progress. For further products please contact us.

...

© 2024 DIGISOUND-Electronic GmbH

WordPress Cookie Plugin von Real Cookie Banner
