Mechanical-Buzzer

Back

Subcategories

F/NCMB 06 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

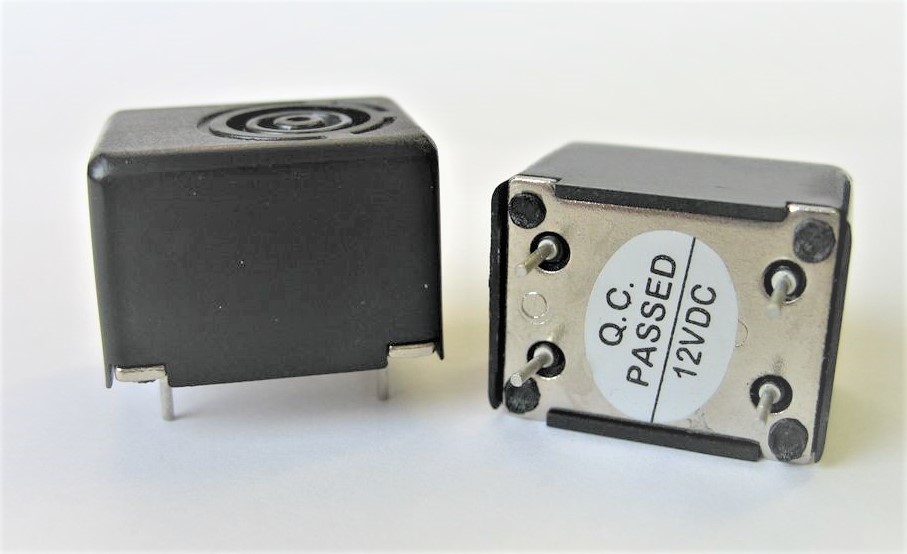

F/NCMB 12 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
12 VDC
Operating Voltage
9 - 15 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

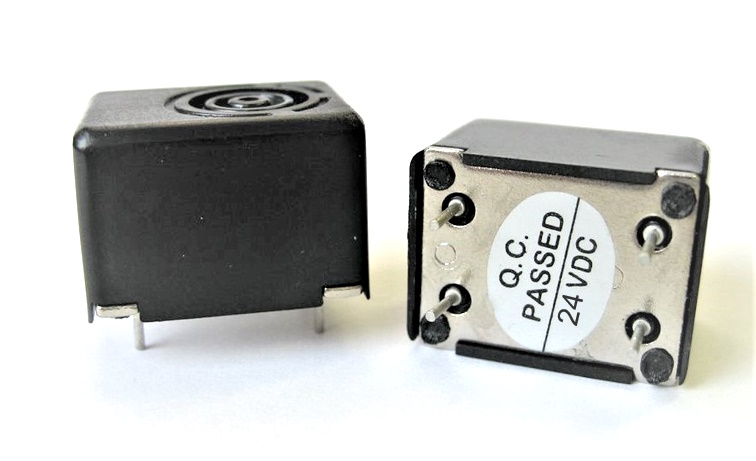

F/NCMB 24 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
24 VDC
Operating Voltage
15 - 27 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

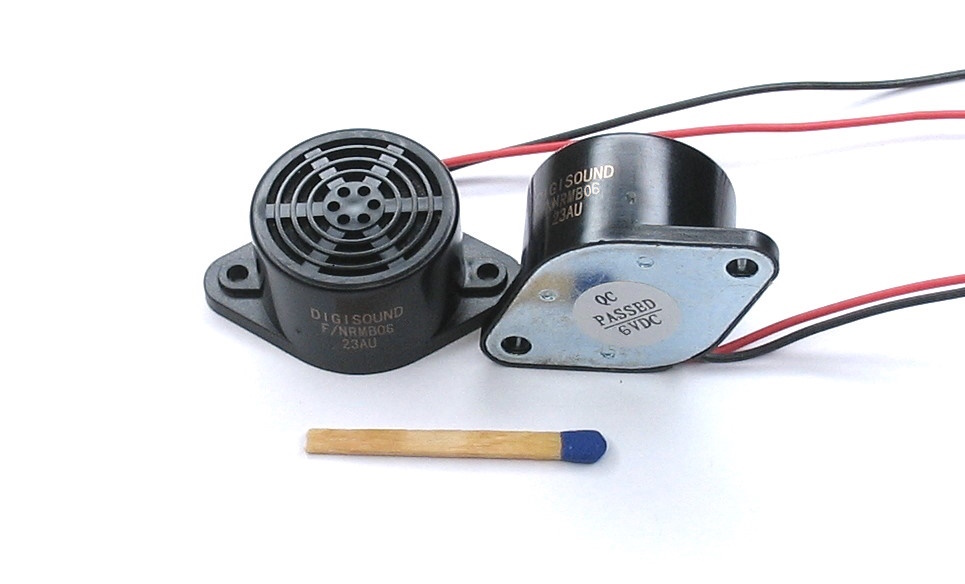

F/NRMB 06 BLACK

Dimension
Ø26.4 x 41 x 17.6 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥75 dB(A) at 1 m
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

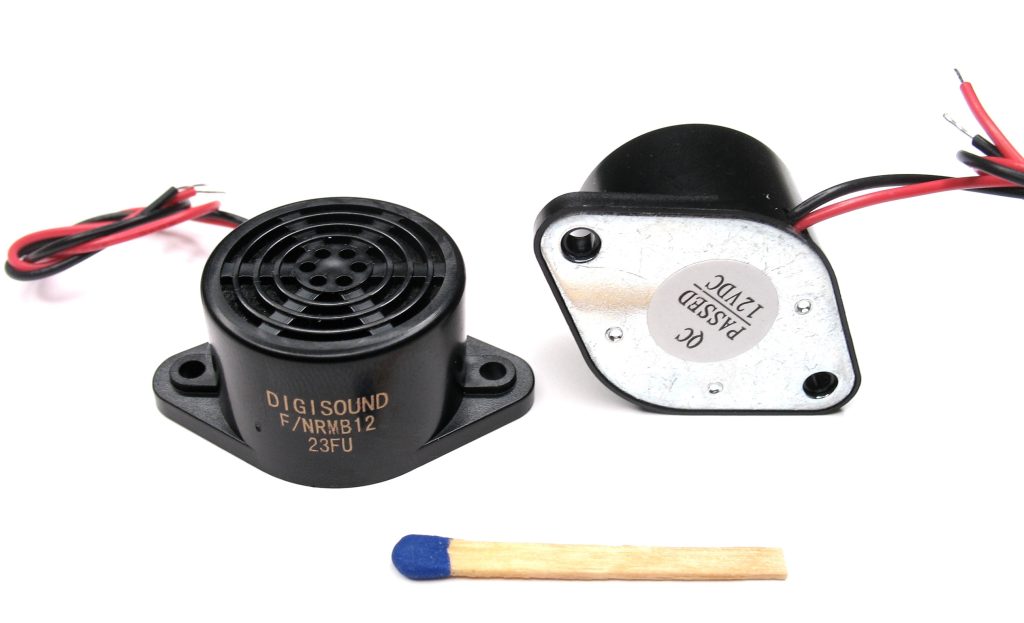

F/NRMB 12 BLACK

Dimension
Ø26.4 x 41 x 17.6 mm
Rated Voltage
12 VDC
Operating Voltage
7 - 16 VDC
Sound Pressure Level
≥75 dB(A) at 1 m
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-20 to +60 °C

F/NRMB 24 BLACK

Dimension
Ø26.4 x 41 x 17.6 mm
Rated Voltage
24 VDC
Operating Voltage
20 - 28 VDC
Sound Pressure Level
≥75 dB(A) at 1 m
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +80 °C

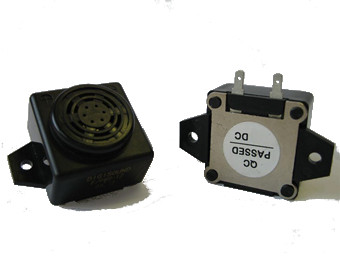

F/PWB 06 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

F/PWB 12 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
12 VDC
Operating Voltage
8 - 16 V
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

F/PWB 24 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
24 VDC
Operating Voltage
20 - 28 VDC
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

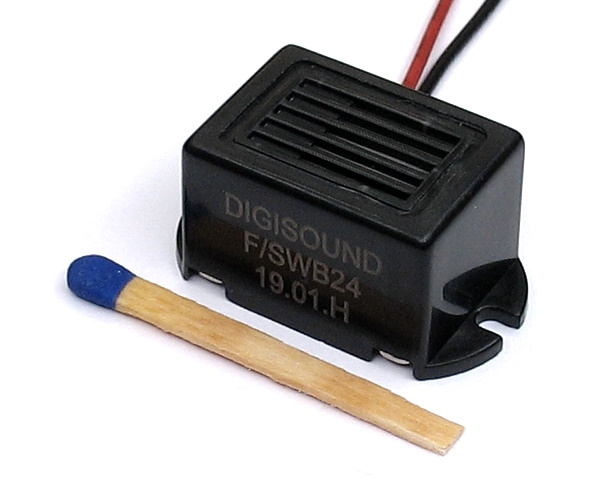

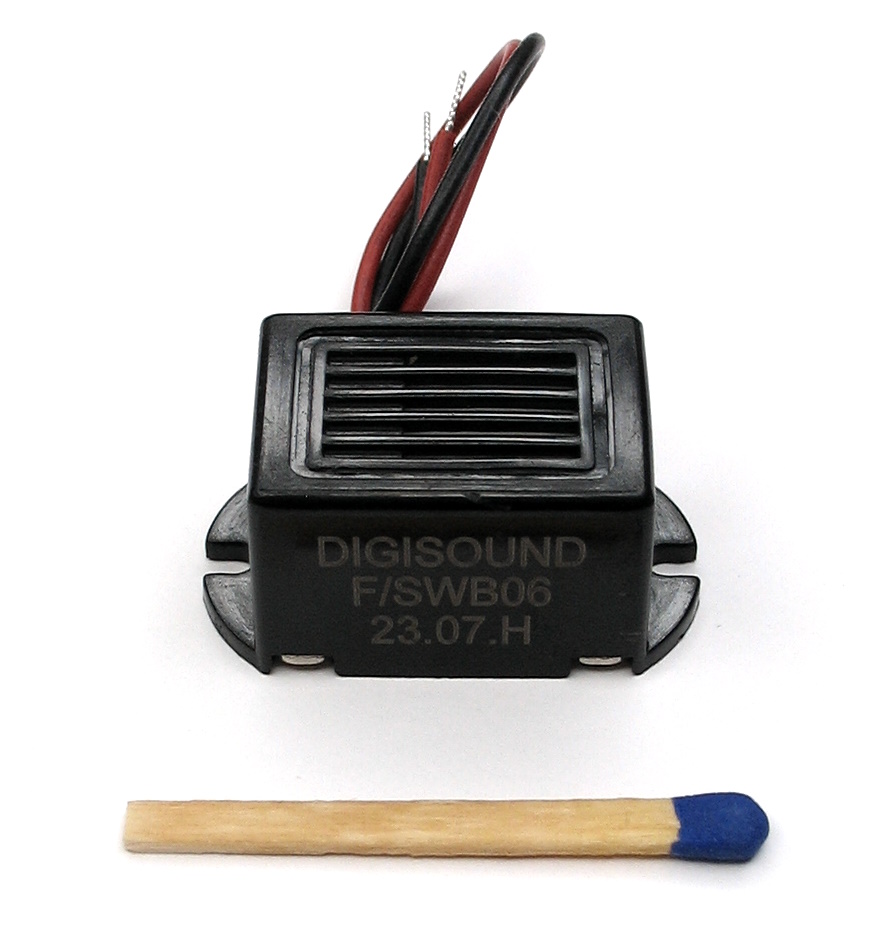

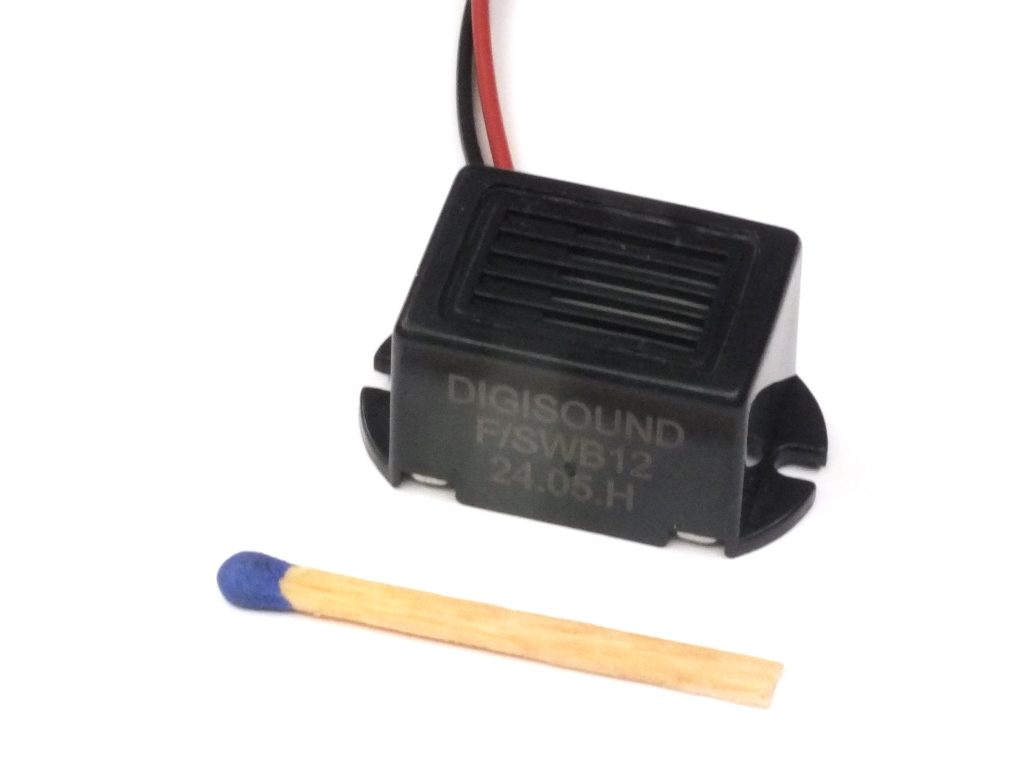

F/SWB Series

Dimension
31 x 17 x 15 mm
Rated Voltage
3, 6, 12 or 24 VDC
Sound Pressure Level
dB(A) at 30 cm ≥80 at 3V, ≥85 at 6V, ≥88 at 12V or ≥90 at 24V
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-20 to +70 °C

Web content in constant progress. For further products please contact us.

...
